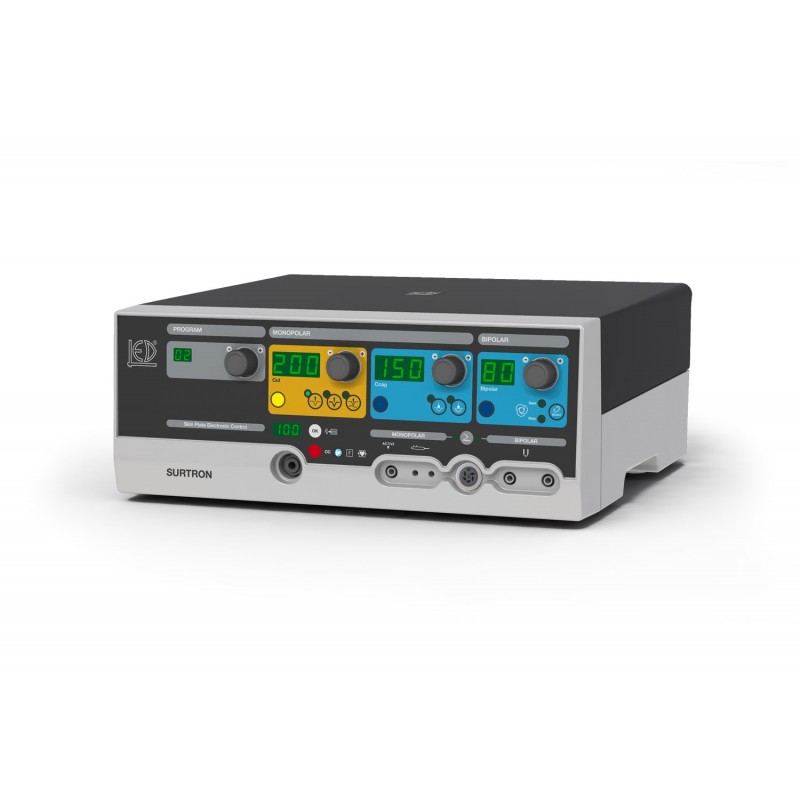

200 Watts Electrical Scalpel
High frequency electrosurgical unit suitable for monopolar surgery.
BIPOLAR coagulation is possible with an optional adapter.
Functions: pure cut CUT , coagulated cut BLEND, superficial coagulation COAGED FORCED , carbonless deep coagulation SOFT COAG.
Digital reading of the supplied power.
The neutral electrode connection is continuously monitored. Different functions and power output can be selected from the knob.
Suitable for: AMBULATORY SURGERY, VASCULAR SURGERY, DERMATOLOGY, OTORHINOLARYNGOLOGY, GYNECOLOGY, VETERINARY, DENTISTRY and FIRST AID
Included Accessories:
1 autoclavable handle with switches
1 assorted electrode kit (10 pieces)
1 cable for neutral electrode
1 neutral steel electrode
1 footswitch and 1 2 m power cord
Optional Accessories: Bipolar LBR43 Adapter.
Maximum output power CUT: 160W -250Ω
Maximum output power BLEND: 120 to 200Ω
Maximum output power FORCED COAG: 100 W - 150Ω
Maximum output power SOFT COAG: 80W - 100Ω
Maximum power BIPOLAR: 60W - 100Ω
Operating frequency: 600 kHz
Neutral electrode: F , Power Range: 115-230 Vac
Network Frequency: 50 to 60 Hz
Max Absorbed Power: 350 VA
Dimensions: W: 25.4 x D: 28.8 x H10.4 cm
Weight: 5 Kg
